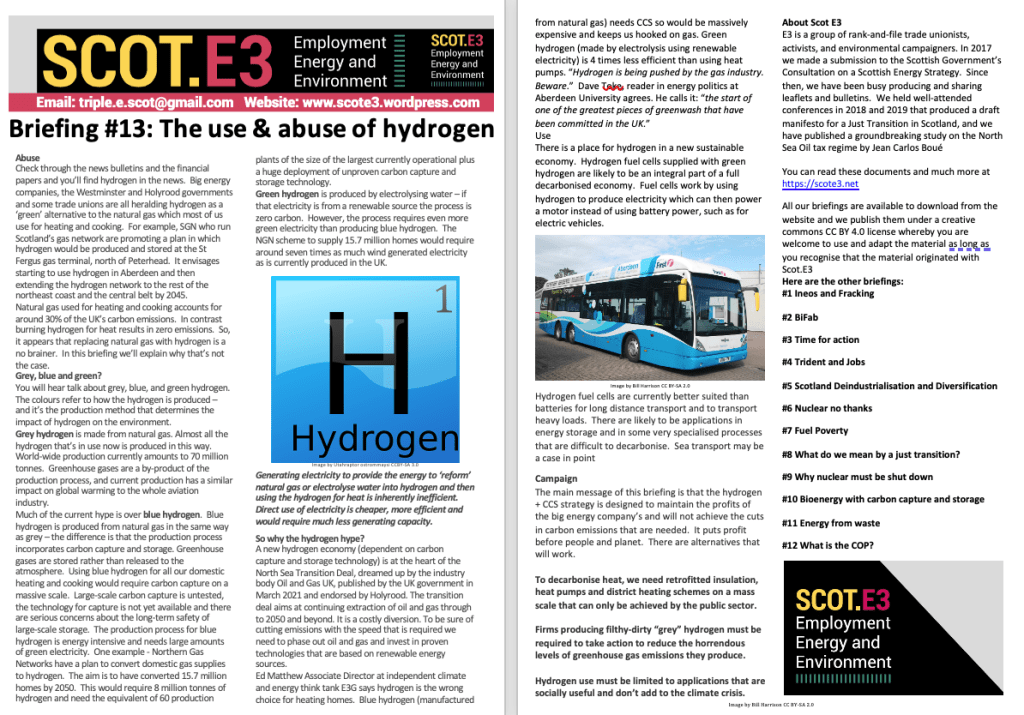

The latest in our series of briefings. Like all of the briefings this one is just two sides of A4 and is published under a Creative Commons license which means you are welcome to share, adapt and reuse the content. Download a PDF version here.
Check through the news bulletins and the financial papers and you’ll find hydrogen in the news. Big energy companies, the Westminster and Holyrood governments and some trade unions are all heralding hydrogen as a ‘green’ alternative to the natural gas which most of us use for heating and cooking. For example, SGN who run Scotland’s gas network are promoting a plan in which hydrogen would be produced and stored at the St Fergus gas terminal, north of Peterhead. It envisages starting to use hydrogen in Aberdeen and then extending the hydrogen network to the rest of the northeast coast and the central belt by 2045.
Natural gas used for heating and cooking accounts for around 30% of the UK’s carbon emissions. In contrast burning hydrogen for heat results in zero emissions. So, it appears that replacing natural gas with hydrogen is a no brainer. In this briefing we’ll explain why that’s not the case.
Grey, blue and green?
You will hear talk about grey, blue, and green hydrogen. The colours refer to how the hydrogen is produced – and it’s the production method that determines the impact of hydrogen on the environment.
Grey hydrogen is made from natural gas. Almost all the hydrogen that’s in use now is produced in this way. World-wide production currently amounts to 70 million tonnes. Greenhouse gases are a by-product of the production process, and current production has a similar impact on global warming to the whole aviation industry.
Much of the current hype is over blue hydrogen. Blue hydrogen is produced from natural gas in the same way as grey – the difference is that the production process incorporates carbon capture and storage. Greenhouse gases are stored rather than released to the atmosphere. Using blue hydrogen for all our domestic heating and cooking would require carbon capture on a massive scale. Large-scale carbon capture is untested, the technology for capture is not yet available and there are serious concerns about the long-term safety of large-scale storage. The production process for blue hydrogen is energy intensive and needs large amounts of green electricity. One example – Northern Gas Networks have a plan to convert domestic gas supplies to hydrogen. The aim is to have converted 15.7 million homes by 2050. This would require 8 million tonnes of hydrogen and need the equivalent of 60 production plants of the size of the largest currently operational plus a huge deployment of unproven carbon capture and storage technology.
Green hydrogen is produced by electrolysing water – if that electricity is from a renewable source the process is zero carbon. However, the process requires even more green electricity than producing blue hydrogen. The NGN scheme to supply 15.7 million homes would require around seven times as much wind generated electricity as is currently produced in the UK.
Generating electricity to provide the energy to ‘reform’ natural gas or electrolyse water into hydrogen and then using the hydrogen for heat is inherently inefficient. Direct use of electricity is cheaper, more efficient and would require much less generating capacity.
So why the hydrogen hype?
A new hydrogen economy (dependent on carbon capture and storage technology) is at the heart of the North Sea Transition Deal, dreamed up by the industry body Oil and Gas UK, published by the UK government in March 2021 and endorsed by Holyrood. The transition deal aims at continuing extraction of oil and gas through to 2050 and beyond. It is a costly diversion. To be sure of cutting emissions with the speed that is required we need to phase out oil and gas and invest in proven technologies that are based on renewable energy sources.
Ed Matthew Associate Director at independent climate and energy think tank E3G says hydrogen is the wrong choice for heating homes. Blue hydrogen (manufactured from natural gas) needs CCS so would be massively expensive and keeps us hooked on gas. Green hydrogen (made by electrolysis using renewable electricity) is 4 times less efficient than using heat pumps. “Hydrogen is being pushed by the gas industry. Beware.” Dave Toke, reader in energy politics at Aberdeen University agrees. He calls it: “the start of one of the greatest pieces of greenwash that have been committed in the UK.”
There is a place for hydrogen in a new sustainable economy. Hydrogen fuel cells supplied with green hydrogen are likely to be an integral part of a full decarbonised economy. Fuel cells work by using hydrogen to produce electricity which can then power a motor instead of using battery power, such as for electric vehicles.
Hydrogen fuel cells are currently better suited than batteries for long distance transport and to transport heavy loads. There are likely to be applications in energy storage and in some very specialised processes that are difficult to decarbonise. Sea transport may be a case in point
The main message of this briefing is that the hydrogen + CCS strategy is designed to maintain the profits of the big energy company’s and will not achieve the cuts in carbon emissions that are needed. It puts profit before people and planet. There are alternatives that will work.
To decarbonise heat, we need retrofitted insulation, heat pumps and district heating schemes on a mass scale that can only be achieved by the public sector.
Firms producing filthy-dirty “grey” hydrogen must be required to take action to reduce the horrendous levels of greenhouse gas emissions they produce.
Hydrogen use must be limited to applications that are socially useful and don’t add to the climate crisis.
Thanks to the People and Nature blog for alerting us to this excellent short video which sums up many of the reasons why the hype that surrounds hydrogen is so misguided. You can find links to a couple of longer articles on this issue on our ‘further reading‘ page and to blog posts here and here.
We’re pleased to be able to repost this article by Gabriel Levy which was first published on the People and Nature blog. Do check out the People and Nature site which has a wealth of useful and informative resources and follow the site on Twitter @peoplenature
A plan to pipe hydrogen, instead of natural gas, to millions of UK households is being pushed hard by the fossil fuel industry. It sounds “green” – but could wreck efforts to make homes truly zero carbon, using insulation and electric heat pumps.
Oil and gas companies support switching the gas grid to hydrogen, as a survival option in case of decarbonisation, as hydrogen is usually fabricated from gas.
But the hydrogen strategy cuts across the approach recommended for years by housing policy wonks and architects: to use insulation to slash the amount
of heat needed, and install electric pumps (which work like fridges in reverse).
Leeds Trades Union Council (TUC) last month launched a campaign in favour of retrofitting homes with high-quality insulation and heat pumps.
It’s an issue many people can unite around – those fighting for better housing and tenants’ rights, campaigners against fuel poverty, trades unionists fighting building industry cuts, and all of us who want to tackle climate change.
And there’s a choice to be made we cannot avoid.
If the gas grid is switched to hydrogen, that will block for good the electrification-and insulation approach, that heats homes better, more cheaply, with technology that we know works, and is truly zero-carbon. We cannot have it both ways.
We will be locked into extra dependency on fossil fuels, instead of speeding the shift away from them.
That gas-to-hydrogen switch is being planned in north-east England by Northern Gas Networks (NGN): its H21 project would convert 3.7 million homes and businesses by 2035, and 15.7 million by 2050. NGN is asking the government to fund an engineering study for it.
This article is a guide to the debates and to more information. It covers:
hydrogen and its drawbacks;
whole system solutions: existing technologies to decarbonise heating
the government’s no-strategy strategy and how we could resist it; and
There is a short appendix with a non-technical guide to the technologies.
Hydrogen and its drawbacks
Hydrogen is touted as a “green” fuel internationally, because governments seek industry-friendly paths to decarbonisation, and oil and gas companies offer this false solution.
The International Energy Agency (IEA) last year published a report on hydrogen, which noted active support for it by the Chinese, Brazilian, Indian, Australian and many European governments.
Much of this is based on a totally unproved assumption: that technology to produce zero-carbon hydrogen can be made to work at scale. That is a long way off, and may never happen.
There are two supposedly carbon-free types of hydrogen: “blue” hydrogen made from natural gas, from which the carbon is removed and stored; and “green” hydrogen made by electrolysing water. Neither has ever been used at large scale.
At the moment, about 70 million tonnes of hydrogen is produced per year globally, and 98% of it is “grey” hydrogen, made from natural gas … without carbon capture. So it emits a huge amount of greenhouse gases – almost as much as the aviation industry. (See below for more details on the technologies.)
Large-scale “blue” or “green” hydrogen production is far away for three types of reasons.
Cost. The European Commission estimates that “blue” hydrogen would cost €2 a kilogramme at today’s prices, and “green” hydrogen €2.50-€5.50/kg, compared to €1.50/kg for existing “grey” hydrogen.
Technology. “Blue” hydrogen needs carbon capture and storage (CCS) technology that does not yet work at scale anywhere. Transporting hydrogen might not be the walk in the park that some companies claim, either, this presentation suggests.
Resource use. “Green” hydrogen uses huge quantities of electricity and water.
Take the NGN project. It would by 2050 need 8 million tonnes of hydrogen per year, equivalent to 300 Terawatt hours (TWh) of electricity.
To supply that amount of “green” hydrogen, Friends of the Earth says,would need 140 Gigawatts (GW) of wind-powered electrolyser capacity – compared to a current total UK wind capacity of 22 GW (which supplies about one fifth of
the UK’s electricity). Plus the same amount of water as is used by 1.2 million homes.
If “blue” hydrogen were used instead, 60 plants, as big as the world’s biggest, would have to be built … fitted with that CCS technology that is still in development.
I am not arguing that hydrogen – especially “green” hydrogen – could never be used, during and after the transition away from fossil fuels. But now, it is not a priority or a game-changer.
Today, most hydrogen is used in oil refining and fertiliser manufacture. Hopefully, much of this current use will disappear, along with fossil-fuelled industries. There may well be new uses, because low- or zero-carbon hydrogen might be the best substitute for fossil fuels e.g. to make steel. Hydrogen is also good for storing energy.
But why, in any sane world, would you start by searching for new ways to use hydrogen, as governments are trying to do now?
Why would you even think about using hydrogen to heat people’s homes – when technologies that work, that are already in use (retrofitting, electricity and heat pumps) could do the job better?
Unless you were seeking ways of wringing the last few bits of profit out of oil and gas production.
Whole-systems solutions: existing technologies can decarbonise heating
Government and parliamentary reviews, too, have found that heat pumps and insulation are the way to go. (They have also looked at a hybrid heat pump system, in which a heat pump provides heat for 85% of the time, but switches to a gas boiler during colder periods.)
The government’s business and industry department (BEIS) did a big review of home heating options in 2018. It concluded that, first, there should be a “growth in no or low-regrets low carbon heating” measures, including heat pumps, biomass boilers and solar water heaters. But BEIS said that, long term, all technologies had to be looked at – and kept the hydrogen option open, by commissioning the engineering company Arup to do a feasability study.
The parliamentary Committee on Climate Change also did a big study on hydrogen in 2018, and concluded that it is “best used selectively, where it adds most value alongside widespread electrification” – and providing CCS could be got to work properly. Most urgent, the CCC pointed out, is “strategic certainty about how the decarbonisation of heat will be delivered in the UK”.
(The detailed analysis for the CCC was done at Imperial College. It showed that a hydrogen-based approach would be more expensive, especially if the aim were zero carbon, and that up-front investment makes more sense to stop emissions. There is more from Imperial on “smart and flexible heat” here.)
All this paperwork underlines that an integrated approach is needed. Buildings need to be upgraded and insulated; different types of heat pumps and different installation methods are called for; expertise and training have to be developed; in some areas, district heating networks make sense.
In the face of this pile of evidence that, more than anything, home heating needs a strategy – the government has avoided adopting a strategy. It “has yet to make any firm decisions about which pathways it prefers”, this report on the Renewable Technology site explained in July.
The politics of this is very clear.
In the face of climate crisis, the government must choose between an integrated strategy, best implemented through local government, relying on existing technology … or a no-strategy strategy that takes the lead
from powerful private companies with unproven technology.
The no-strategy strategy fits with this government’s maniacal, neoliberal hatred of the public sector – one of its few ideological principles. That was what motivated its no-strategy strategy on coronavirus testing and tracing, with devastating results, costing tens of thousands of lives.
A heat decarbonisation strategy will have to be fought for in opposition to the government – just as health workers, scientists and others have had to fight for a coronavirus strategy.
This is why the Leeds TUC initiative, which appeals to local government to act, is welcome.
The Leeds TUC has recognised a techno-fix for what it is – damaging to society and the labour movement. Its campaign could be a focus for all who want to tackle dangerous climate change.
If you are in a trade union, an environmental campaign group or a community organisation, please discuss the Leeds TUC’s document and the actions it proposes.
If you are in a union, you could challenge trade union leaders’ support for the oil and gas industry’s hydrogen initiative.
Instead of such support, the labour movement should:
First, embrace technologies that are in society’s best interests – which for heat decarbonisation means retrofitted insulation and heat pumps;
Second, demand that firms producing filthy-dirty “grey” hydrogen take action to reduce the horrendous levels of greenhouse gas emissions they produce; and
Third, urge that future hydrogen use be limited to applications that are socially useful and don’t add to the climate crisis.
The H21 project is at a crossroads. The companies who sponsor it – NGN, the gas network firm Cadent and the Norwegian oil company Equinor – got state funding for a series of initial reports: £9 million from the Ofgem Network Innovation Competition (NIC) in 2017, mainly to fund safety assessments; and another £6.8 million in 2019 to test the technology at a specially-built site at Spadeadam. (Update from a H21 manager here.)
But H21’s plea for a much larger dollop of state funding – £125 million, half the cost of a Front End Engineering and Design (FEED) study, originally scheduled to start this year – has not so far been heeded, despite the “urgency” explained in the H21 North of England report (available here, although temporarily (October 2020) missing).
Meanwhile, the government has announced another project – to support an industrial complex on Teesside, making “blue” hydrogen for transport – that could be an alternative source of demand for natural gas being pumped from the North Sea … and has as little as H21 to do with tackling the climate emergency.
Despite the question marks over H21, the oil and gas industry’s lobbying machine in support of hydrogen for heat decarbonisation is trundling on, with greater force than ever.
And in August, the gas industry “scored a success in persuading the Environmental Audit Committee [of the House of Commons] to back its plans for using hydrogen […] in domestic heating”, the 100% Renewable UK blog reported.
The committee chair, Philip Dunne MP, deceitfully suggested that hydrogen is “the most cost-effective option” for “parts of the UK energy system”.
Tom Baxter, a chemical engineering researcher, questions the pro-hydrogen arguments in this article.
Gas network companies have also jumped on the post-Covid financing bandwagon, asking for a huge state hand-out for conversion to hydrogen. And cement manufacturers – who, like energy companies, need carbon capture and storage – have joined the queue for state funding.
These relentless lobbying efforts are funded by a range of companies including hydrogen, transport, carbon capture, gas network, engineering and chemical firms as well as oil and gas. Their greenwash proliferates through the Decarbonised Gas Alliance and Hydrogen Strategy Now.
Hydrogen is the most common, and lightest, element in the universe, but only exists on earth combined with other elements. People started fabricating hydrogen from compounds and using it e.g. for balloons in the nineteenth century. Today there are three main types of hydrogen:
■ “Grey” hydrogen. Fabricated by removing the hydrogen (H) from methane i.e. natural gas (CH4), or from coal. This is how 98% of hydrogen is currently made. It is extremely emissions-intensive. For every tonne of hydrogen made from gas, 10 tonnes of carbon dioxide (CO2) goes into the atmosphere;
hydrogenfor every tonne from coal, 19 tonnes of CO2.
The 70m tonnes of hydrogen produced in 2018 caused 830m tonnes of CO2 emissions, the IEA calculated. That’s a healthy chunk of the world total of 42 billion tonnes – about the same as total emissions from Indonesia plus the UK – and nearly as much as the global aviation industry, which emitted 915m tonnes in 2019.
Most hydrogen produced now is used for oil refining, and ammonia production to make chemical fertilisers. Some is used as part of synthetic gas products, mainly for manufacturing steel, or methanol.
■ “Blue” hydrogen. In this process, instead of CO2 being emitted into the atmosphere, it is captured and stored. The capture process, steam reformation, is straightforward for about 70% of the emissions and gets really tricky above and beyond about 85%.
Steam reformation splits methane into CO2 and synthetic gas (carbon monoxide plus hydrogen); in the second stage, the synthetic gas is mixed with steam; more CO2 is removed and hydrogen produced. Other similar processes are partial oxidation, which uses oxygen in the air as an oxidant instead of steam, and autothermal reforming, which combines both methods.
Note on carbon capture and storage. This can also be used in gas- and coal-fired power stations. Usually the carbon is captured after the fuel has been burned. Then, as with carbon from hydrogen production, it has to be transported and stored. CCS has been in development for about 40 years, but there are still only 20 projects in development in the world. Only two of these ever actually functioned, and one of those two (Petra Nova in Texas) was mothballed in August. (A good analysis is here.) CCS is greenwashed as the key to “green power”. Some politicians, and some international climate talks documentation, claim that bioenergy with CCS could play a big role in global decarbonisation, but climate scientists and engineers think that is nonsense.
■ “Green” hydrogen. Produced by electrolysis of water. The electricity could come from fossil fuels (in which case it would not be green), nuclear power or renewables. The process is proven, but is very energy intensive and very inefficient.
If electricity from renewables were to be used, this could be the most “carbon light” way of producing hydrogen. But huge targets for “green” hydrogen production are sometimes published without being reconciled with other huge targets for renewably-produced electricity. Is producing hydrogen ever going to be the best way to use this electricity? The IEA says that just to produce the 70m tonnes of hydrogen the world economy uses annually would need 3600 TWh of electricity, more than total European consumption. The electrolysis also needs huge amounts of water – 9 litres for each kilo of hydrogen.
Gazprom, the Russian gas company, sees potential in producing hydrogen by methane pyrolysis, a related technology. GL, 30 October 2020.
We are pleased to publish a contribution to the growing debate on the use of Hydrogen to replace north sea gas for domestic heating written by Pete Roche – the article was originally published in the bulletin of Nuclear Free Local Authorities.
An argument about the future use of hydrogen, in particular for heating, has been raging amongst energy professionals and lobbyists since the Government announced it was looking at setting a date by which all boilers on sale would be “hydrogen ready”, meaning they can burn natural gas but can also be converted easily to burning hydrogen. It was also announced that the natural gas supply at Keele University is being blended with 20% hydrogen in a trial that’s of national significance.
Households could soon be required to install a boiler capable of burning hydrogen when they next upgrade their central heating system. The government has already pledged to ban installation of fossil fuel heating systems in new homes from 2025. In November Sajid Javid, the chancellor, visited the headquarters of Worcester Bosch to inspect its prototype hydrogen-ready boiler. The company says the boilers would be available by 2025. They would be £50-£100 more expensive than existing boilers, which typically cost about £900. The benefit over existing boilers is that they can continue burning natural gas but be converted to burning hydrogen in an operation that will cost about £150 and take a gas engineer one hour.
The Department for Business, Energy and Industrial Strategy’s Hy4Heat programme aims to determine the feasibility of hydrogen for heating in homes and includes work with industry to develop prototype hydrogen appliances, including hydrogen ready boilers. About 1.7 million boilers are replaced each year so if they were required to be hydrogen-ready from 2025 most homes would have the necessary boiler by the mid-2030s to allow a switch to hydrogen. (1)
One of the arguments in favour of converting our gas boilers to hydrogen is that we have poorly insulated houses with insufficient space for installing a heat pump. If you were to design a heating policy from scratch, you would not choose hydrogen. You would build well-insulated houses that use electric heat pumps. (2) Worcester Bosch argues that a house needs to have an Energy Performance Certificate rating of C or above for a heat pump to be able to heat the house effectively. According to them of the 3,276,000 UK properties within the EPC band C rating, some 3,223,000 have a condensing boiler. One of the ways of jumping one clear band within the EPC methodology is to replace a non-condensing boiler with a condensing version. This means that many of the properties in band C are really constructed to band D levels of fabric and therefore unsuitable as they stand for a heat pump installation. (3)
Ed Matthew Associate Director at independent climate and energy think tank E3G says hydrogen is the wrong choice for heating homes. Blue hydrogen (manufactured from natural gas) needs CCS so would be massively expensive and keeps us hooked on gas. Green hydrogen (made by electrolysis using renewable electricity) is 4 times less efficient than using heat pumps. “Hydrogen is being pushed by the gas industry. Beware.”
Dave Toke, reader in energy politics at Aberdeen University agrees. He calls it: “the start of one of the greatest pieces of greenwash that have been committed in the UK.” The oil and gas industry is promoting so-called ‘blue hydrogen’, that is hydrogen produced by ‘reforming’ natural gas, and capturing the carbon dioxide that is produced. Yet currently most hydrogen is produced by reforming natural gas and not capturing carbon dioxide, a process that will dramatically increase carbon dioxide emissions if hydrogen is used to heat homes. The efficiency of the gas reformation process is only around 65% meaning that much more carbon dioxide is generated to produce the hydrogen as fuel compared to simply burning the natural gas. He says any claims that the process will be done using carbon capture and storage, beyond that is a few demonstration projects supported by public grants, should be taken with a wagon load of salt.
But even if ‘green’ hydrogen generated by renewable energy were used, it would still be a grossly inefficient way of using that renewable energy. Renewable energy is normally distributed through the electricity system where it can power heat pumps in homes (either individually or through district heating systems) to much greater effect. The heat pumps use electricity much more efficiently compared to any hydrogen boilers, no matter how the hydrogen is produced. Indeed, a heat pump may increase the efficiency of the use of renewable energy by approaching fourfold compared to using ‘green hydrogen’ in a boiler. (4)
Richard Black from the Energy and Climate Intelligence Unit (ECIU) told BBC News: “We will and should have hydrogen in the mix of energy options, but it’s not a wonder solution to everything, which you sometimes get the impression from the rhetoric. There is hope – but too much hype.” (5)
Commentators also argue about the cost with some saying hydrogen will prove too expensive for mass usage, while others say switching to the use of electricity for heating will be far more costly than gas central heating and will put enormous strains on the grid during the winter months. However, heat battery manufacturer, Sunamp, claims that using an air source heat pump on off- peak electricity in conjunction with a heat battery can heat a house for a price comparable with gas central heating.
Lord Deben, chair of the Committee on Climate Change, has expressed confidence that a way will be found to produce hydrogen, which could provide a low carbon substitute for natural gas in heating systems, cheaper than is currently possible. (6)
The Commonweal Common Home Plan (see below) is sceptical about relying on the conversion of the gas grid to hydrogen. And moving to electric heating would roughly increase by a factor of five peak load on the grid which would require significant upgrades to cope. It prefers instead the idea of building district heating networks which can deliver heat from solar thermal, geothermal and industrial waste heat recovery.
New research commissioned by industry body Scottish Renewables shows the Scottish Government’s new Heat Networks Bill could see the equivalent of 460,000 homes – around a fifth of Scotland’s total – heated renewably by 2030, cutting emissions from heat by 10% and helping tackle the climate emergency. The research found 46 potential heat network projects across Scotland’s seven cities. The networks would initially serve 45,000 homes but could, with the right Scottish Government support, grow ten-fold by 2030. (7)
To date the Scottish Government has said the new Heat Networks Bill will “support, facilitate and create controls [for] the development of district heating” – but is yet to confirm the details. In response to this ongoing uncertainty industry has published, alongside the new research, a set of recommendations on how the Bill should support new projects. The potential projects represent a significant economic opportunity. Civil engineering such as the digging of trenches and laying of pipes accounts for 40% of a typical heat network’s costs, often using locally-sourced labour.
Star Renewable Energy, has installed a heat pump which can extract the small amount of heat generated by the Clyde. The river has an average temperature of around 10oC but engineers can boost it up to 80oC for use in homes. (8)
Meanwhile the HyDeploy pilot involving injecting hydrogen into Keele University’s existing natural gas network, which supplies 30 faculty buildings and 100 domestic properties is now operational. (9) And 7 industrial partners have been pledged to support a demonstration project in Denmark, which, with offshore wind as a power source, will produce renewable hydrogen that can be used in road transport. (10)
